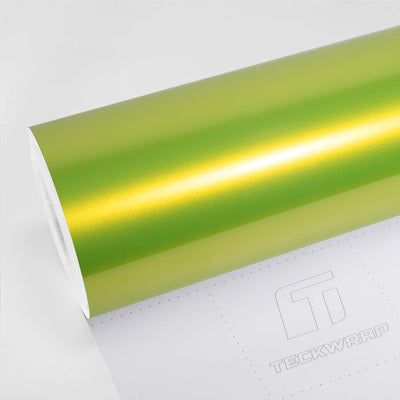

GAL36-HD Citrus Green

GAL36-HD Citrus Green Gloss Aluminium HD TeckWrap Official European Distributor

The thickness of film: 0.17mm
The thickness of film with release liner: 0.34mm
Type of film: It is an advanced polymeric multilayered film with silver coating and air release channels that help achieve smooth application and perfect finish.
The adhesive is Henkel solvent polyacrylate. TeckWrap high-tech adhesive is safe for car paint and has moderate initial tack ensuring easy installation. Transparent, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Products that have “HD” letters in their name are with the plastic release liner (high-gloss films)
Outdoor life: 5 years when followed rules of application and us
Warranty: 2 years when when followed rules of application and service
Aftercare: PH-neutral products. Avoid hot wax or solvents.
Directional: Yes
Dimensional stability: shrinkage less than 2%

Install tips:
Application: from +16°С to +24°С,
Usage from: -30°С to +50°С
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Directional: Yes
Overlap width: 3-4mm
We recommend using a tack reducer for flat panels.
Installation by at least two people/panel
Don't heat up to the line where the film is lifted to prevent adhesive lines.
Apply max 50 degrees of heat when stretching to prevent fading and marks.
Apply soap and water over the squeegee felt to avoid scratches.
Relax the film (heat and let it cool down) before applying it to a recess
Apply adhesive promoter on deep recesses
Post-heat a vinyl to 100-110°С to a recommended temperature

How Much Wrap Do I Need?
Motorcycles 3-5 meters
Mini, small cars 12-14 meters
Convertible 13-15 meters
Coupe 14-16 meters
Sedan 14-17 meters
Hatchback 14-17 meters
Sports Car 16-17 meters
Station Wagon 17-18 meters
Sport-utility Vehicle (SUV) 17-19 meters
Minivan 18-20 meters
Pickup Truck 18-22 meters
Important note: The images, colors, and finishes on the screen are approximate. The warranty does not cover the scratching of the film.
